Robox-JK Automatic Slipcase Making Machine

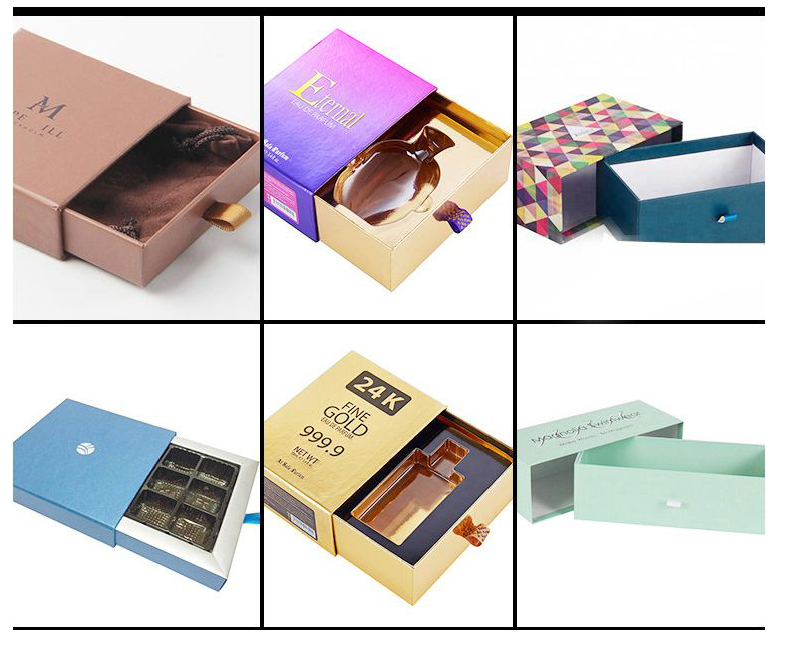

ZJH-S2 is a semi automatic model specifically designed to make all types of slipcases/spirit boxes.It automates the slipcase making processes of paper wrapping, bottom plate sticking and box forming. With the air-vacuum part it allows the factory to make slipcases without the corner pasting process. For its high efficiency it can replace 3-4 workers on manual processes.

  • Outstanding advantages
  • Features
  • Parameter
  • Service

C

RoBox-S2 is a fully automatic model specifically designed to make v-grooved type of slipcases/spirit boxes.It automates the slipcase making processes of paper turn-in, box forming, bottom closing, bubble pressing in one go. With the air-vacuum part it allows the factory to make slipcases without the corner pasting process. For its high efficiency it can replace 3-4 workers on manual processes.

1. No installation process, plug-in and ready to go.

2. Manual feeding, automatic feeding, both options, simple control and fast job setting.

3. The operating system is simple and convenient, most of adjustments are made with servo system.

4. Fully automatic, every process is done in one go, even bubble press the box after finished.


Standard Max box size

L190mm×W100mm×H210mm

Min box size

15mm×15mm×H35mm

Working speed

0-1400Pcs/Hour

Machine size  L*W*H

1800×1300×2000mm

Machine weight

1800kg

Machine power

9.2KW/AC220


Delivery time and payment:

10 days after receiving a 30% deposit. The balance needs to be paid before shipment.

Limited Warranty :

One year for mechanical parts, 3 months for pneumatic parts. We provide free spare parts and service to restore it if the malfunction or damage is not caused by human error, Otherwise the cost to purchase and send new parts will be borne by the buyer.

Installation and Job Setting:

Robox will provide box testing, job setting, and training, video call assistance for installation and job setting for free, if needed, a techncian will be sent to install the machine and provide training on-site.
